Amplifier PCB: In-Depth Guide on Design, Layout, and Applications

Views: 378 Author: Site Editor Publish Time: 2024-11-13 Origin: Site

Amplifier PCBs, or printed circuit boards, are essential in electronics that require signal amplification. From audio systems to medical devices and RF applications, these boards form the heart of amplifiers by hosting components that amplify weak signals into powerful outputs. In this article, we’ll explore the design, characteristics, and applications of amplifier PCBs, as well as the differences from standard PCBs and best practices for building efficient amplifier boards.

What is an Amplifier PCB?

An amplifier PCB is a specialized circuit board designed to increase the amplitude of an input signal. These boards are fundamental to the performance of an amplifier, housing key components like transistors, capacitors, resistors, and sometimes integrated circuits (ICs) that enable signal enhancement. The layout and materials used in amplifier PCBs must support high signal integrity and thermal management, as these boards often handle high power and are sensitive to noise and interference.

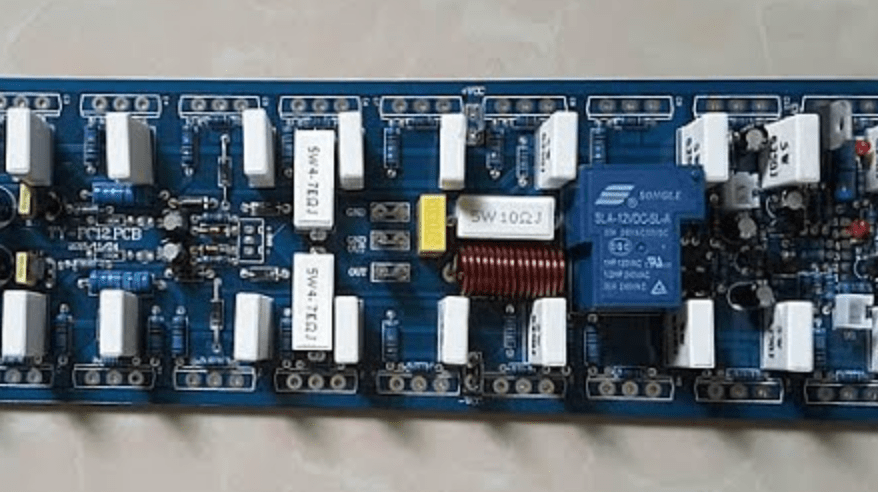

Amplifier PCB

Essential Components in an Amplifier PCB

The effectiveness of an amplifier PCB depends on its components and their layout:

  • Transistors: Transistors are central to amplification, controlling current flow to increase the strength of the input signal. Choices like bipolar junction transistors (BJTs) offer high current gain, while field-effect transistors (FETs) provide high input impedance, reducing signal loss at the input stage.

  • Capacitors: Capacitors filter unwanted noise and stabilize power supply variations, which is essential for audio applications. High-quality, low-tolerance capacitors ensure consistent frequency response and minimal distortion.

  • Resistors: Resistors control voltage levels and set biasing points for transistors. Precision resistors help maintain stability in the circuit, especially near high-current areas where heat can affect performance.

  • Integrated Circuits (ICs): Amplifier ICs, like the LM386 for audio applications, simplify the design process by providing built-in amplification features. However, they still require careful thermal management to avoid overheating, especially in compact designs.

The choice and arrangement of these components influence the amplifier PCB’s gain, bandwidth, noise immunity, and overall stability.

Characteristics of an Amplifier PCB

Amplifier PCBs possess unique characteristics that support high-performance amplification:

  • High Input Impedance: Prevents loading the input signal, ensuring the full signal voltage is applied to the amplifier.

  • Limited Bandwidth: A well-defined bandwidth prevents excessive noise by filtering out unwanted frequencies.

  • High Open-Loop Gain: Provides significant signal amplification without feedback, enhancing output power.

  • Low Output Impedance: Ensures minimal signal loss when driving output devices, like loudspeakers or sensors.

These characteristics help maintain signal clarity, stability, and efficiency, even in demanding applications.

Types of Amplifiers and Their PCB Requirements

Different types of amplifiers serve various functions, from enhancing audio signals to amplifying radio frequencies (RF) for wireless communication. Each type has specific PCB design needs:

Audio Amplifiers

For audio devices, the PCB layout must minimize noise and distortion to maintain sound quality. Audio amplifiers are common in speaker systems, where they amplify low-power audio signals to drive speakers. The PCB design emphasizes grounding and trace separation to avoid signal degradation.

Power Amplifiers

Used in applications needing high output power, such as broadcasting or industrial machinery, power amplifiers require PCBs capable of handling significant currents and dissipating heat efficiently. These designs often feature thick copper layers, wide traces, and large capacitors to manage the increased power flow.

RF Amplifiers

Operating at high frequencies, RF amplifiers amplify signals for devices like radios and cell towers. These PCBs require precise impedance matching, short trace lengths, and meticulous grounding to ensure signal clarity. RF amplifier designs often integrate shielding to isolate the signal from external interference.

Each amplifier type’s requirements are influenced by the operating environment, signal frequency, and power levels, making careful design crucial for optimal performance.

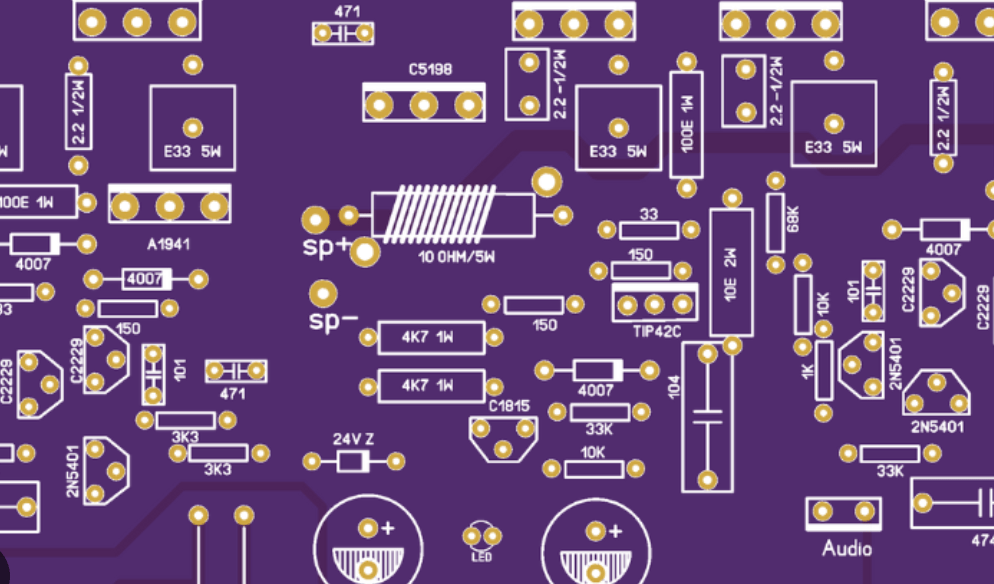

Audio Amplifier PCB

Uses of Amplifier PCBs

Amplifier PCBs are used across a variety of fields, each leveraging their ability to enhance signal strength:

  • Audio Amplification: Found in audio devices, from home theater systems to headphones, these PCBs amplify signals for speakers and other output devices.

  • Signal Conversion: Amplifier PCBs convert analog signals to digital or square waves, critical in communications and signal processing.

  • Medical Imaging: Ultrasound scanners use amplifier PCBs to amplify weak signals, producing high-quality images.

  • Industrial Testing: In fields like metal fatigue testing, amplifier PCBs amplify sensor signals, detecting tiny changes in material properties.

These applications demonstrate the versatility of amplifier PCBs, from boosting audio signals to enhancing medical diagnostics.

Differences Between Amplifier PCBs and Normal PCBs

While standard PCBs share basic design principles with amplifier PCBs, there are notable differences:

  • Thermal and Power Handling: Amplifier PCBs must manage higher power and often incorporate thicker copper layers, larger heat sinks, and more robust thermal management strategies.

  • Dielectric Constant: Amplifier PCBs typically use materials with a high dielectric constant to reduce signal loss and maintain impedance control.

  • Impedance Matching: Especially critical in RF amplifiers, impedance matching prevents signal loss and reflections, a feature less emphasized in standard PCBs.

These differences underscore the specialized design requirements for amplifier PCBs to ensure efficient, high-quality amplification.

Designing and Laying Out an Amplifier PCB

Creating an efficient amplifier PCB involves both meticulous design steps and strategic layout practices to ensure optimal performance. Each step in the design process, from schematic creation to component placement, directly impacts signal integrity, power handling, and thermal management. Here’s a combined guide that integrates design and layout best practices.

1. Start with a Detailed Schematic

Begin by developing a comprehensive schematic tailored to your amplifier’s requirements. This schematic should include voltage and current calculations for each component, especially for high-power amplifiers where heat and power handling are critical. Choosing the amplifier class (Class A, B, AB, or D) early in the design process is essential, as it affects power efficiency, distortion levels, and layout complexity.

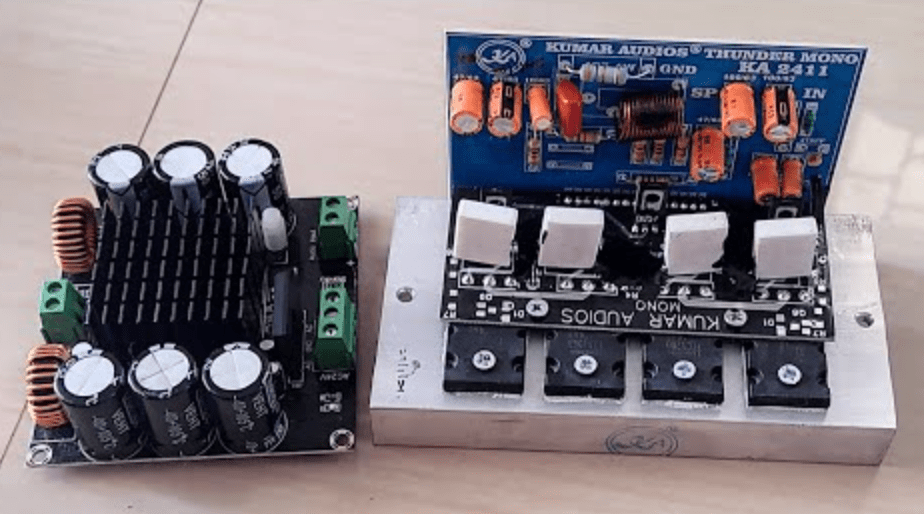

Amplifier PCB

2. Component Selection and Placement for Signal Integrity

Selecting high-quality components like high-tolerance capacitors and precision resistors is key to stable performance. To optimize signal flow, place components to minimize trace lengths, reducing resistance and noise. Separate high-current paths from sensitive signal lines to prevent interference. Position heat-generating parts, such as transistors, near heat sinks or areas with good airflow to ensure efficient thermal management.

3. Grounding Techniques for Noise Reduction

A strong grounding strategy is essential for noise-free performance. Using a dedicated ground plane in multi-layer PCBs offers a low-impedance path, reducing noise and interference. Separating ground paths for power and signal further minimizes interference risks, which is especially important in audio amplifiers where even minor noise can impact sound quality.

4. Power Supply Design and Stability

A stable power supply is critical for amplifier performance. Decoupling capacitors placed near power pins smooth voltage spikes, protecting sensitive components from fluctuations. Adding a voltage regulator ensures consistent power delivery, especially important in audio applications to prevent ripple effects that could degrade sound quality.

5. Heat Dissipation Strategies

Effective thermal management is essential for high-power amplifier PCBs. Heat sinks positioned on high-power components and thermal vias under them help dissipate heat from the PCB surface. Copper pours further assist by increasing heat dissipation. Additionally, arranging components to allow airflow within the enclosure or using heat shields protects sensitive parts from thermal buildup.

6. Signal Tracing and Impedance Matching

Effective signal tracing is vital for maintaining signal integrity and reducing interference. High-power lines should use wide traces to handle larger currents, while narrower traces for signal lines help minimize capacitance. In RF applications, precise impedance matching along traces is essential to prevent signal reflections and loss, ensuring clear, stable signals at high frequencies.

7. Minimizing Electromagnetic Interference (EMI)

High-frequency amplifiers are sensitive to EMI, which can distort signals and cause interference. To minimize this, use smooth 45-degree angles in traces to reduce reflection and noise. Additionally, in RF applications, apply shielding around high-frequency components to protect them from external interference and prevent cross-talk with other PCB parts.

Conclusion

Amplifier PCBs are the backbone of devices that require signal amplification, from audio equipment to medical imaging tools. Through careful design, component selection, and layout techniques, amplifier PCBs achieve reliable, high-quality signal enhancement. By understanding the differences from standard PCBs, leveraging best practices, and incorporating advanced techniques, designers can build amplifier PCBs that meet the stringent demands of modern electronics.

If you’re looking for high-quality, custom PCB solutions for your amplifier projects, VictoryPCB is here to help. Our expertise in advanced PCB manufacturing and assembly can bring your designs to life with precision and reliability. Contact VictoryPCB today by sales@victorypcb.com to discuss your project requirements and request a quote!
