The Importance of PCB Ground Plane and Effective Design Techniques

Views: 1307 Author: Site Editor Publish Time: 2023-06-27 Origin: Site

For PCB design, the PCB ground plane is one of the important factors that must be considered. Without a well-designed ground plane, the circuit board may fail to function as expected and could be susceptible to various forms of electrical noise and interference.

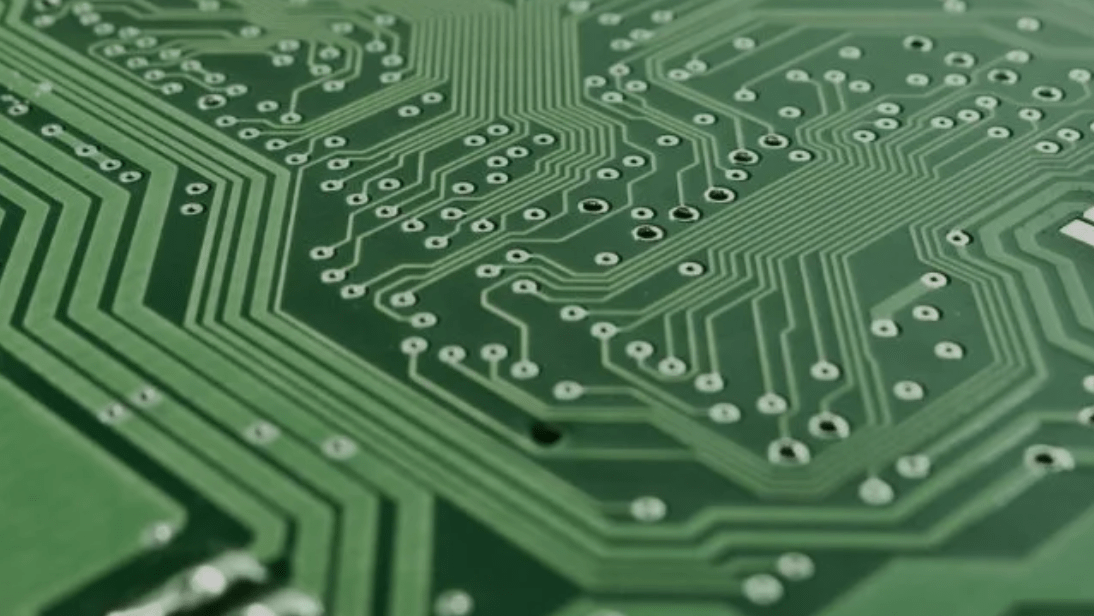

PCB ground plane

Today, let's take a look at what the PCB ground plane is and explore some tips on how to ensure it serves as a solid foundation for your circuit board.

What Is a Ground Plane in a PCB?

The PCB ground plane is an essential component in circuit board design, consisting of a copper foil layer that directly connects to the circuit ground. It serves as the return path for components and current in the circuit, simplifying the circuit layout by eliminating the need for ground traces.

The ground plane can occupy a small portion or an entire layer of the PCB, facilitating efficient voltage return, signal recovery, and noise reduction. Proper implementation of the ground plane technique is crucial to avoid issues such as signal crossroads, ground loops, and electromagnetic noise interference, ensuring optimal performance of the device.

The PCB ground plane tends to get altered according to the circuit board models. For example, in a two-layered PCB, mostly the bottom layer gets used for the ground plane. On the other hand, the entire layer gets used for grounding in the multi-layered boards to avoid any kind of ground loops, signal traces, and additional issues.

Why is the PCB Ground Plane Important?

A ground plane on a printed circuit board is usually a large area of metal connected to the circuit ground. This metal area is sometimes only a small portion of the board, or in multilayer designs it may be an entire board layer. It may even occupy multiple levels, depending on the needs of the design. Ground planes serve three important purposes in printed circuit boards.

Voltage Return

Most every component on the PCB will connect to a power net, and then the return voltage will come back through the ground net. In single or double-layer boards, wider traces are typically used to route the ground nets. However, in multi-layer boards, dedicating an entire layer as the ground plane simplifies the process of connecting each component to the ground net. This approach eliminates the need for extensive ground trace routing and ensures a more efficient and reliable voltage return path.

A multilayer PCB stack-up with over four layers needs more attention. High-quality materials are used to create a solid connection between the ground nets and the circuit components. This ensures that the voltage, which is generated as most of the components connect to the power net, is properly distributed through the ground net.

Signal Return

Regular signals also need a return, and for high-speed designs it is important that they have a clear return path on the ground plane. Without this clear return path, these signals can cause a lot of interference to the rest of the PCB.

Reduce Noise and Interference

A large quantity of energy usually discharges via the ground circuit when a shift occurs in the digital circuit position. This action creates noise and interference that you can avoid by integrating the ground planes.

Power Integrity

PCBs often comprise electronic components that require a lot of power during operation. Therefore, PCB ground planes smooth out the power spikes created by this operation.

PCB Design Guidelines for Ground Planes

When working with the ground in your PCB design, here are some layout recommendations that will help you to create the most robust ground system possible:

  • Maintain Continuity: Ensure that the ground plane maintains continuity throughout the PCB, avoiding any segmentation or breaks. This helps provide a uniform ground path and reduces impedance for current return flow.

  • Proper Layout: Plan the positioning and shape of the ground plane thoughtfully in the design. Minimize the length of ground paths and the area of current loops to enhance the effectiveness of grounding.

  • Adequate Expansion: If possible, increase the size of the ground plane, especially in high-frequency or high-power circuits. Expanding the ground plane reduces current density, minimizing issues with signal crosstalk and electromagnetic interference.

  • Avoid Inter-Layer Coupling: In multi-layer PCBs, take precautions to avoid inter-layer coupling. Use appropriate isolation and planning between layers to reduce interference between signal traces.

  • Thermal Management: Consider heat dissipation and thermal management when designing the PCB ground plane. Layout the ground plane in a way that helps with heat dissipation and ensures the temperature of the circuit board is controlled within a reasonable range.

PCB Grounding Techniques for PCB Design

Here are some common grounding techniques used in PCB design:

Ground Plane

A ground plane refers to a large copper area on a PCB that is connected to the ground. In a two-layer PCB, it is typically located on the bottom layer, while the top layer accommodates traces and components. In the case of a multilayer PCB, one of the internal copper layers is typically dedicated as the ground plane.

To optimize the use of a ground plane, it is advisable to keep signal traces as short as possible and position the ground plane to cover the entire area beneath them. This design approach helps prevent the formation of a conductive loop that acts as an inductor, thereby reducing the generation of external magnetic fields that could lead to the occurrence of a ground loop electric current.

Ground Vias

In a multilayer PCB, the ground planes on different layers are interconnected using vias, which enables access to the ground plane from anywhere on the board. These vias serve the purpose of reducing ground loops within the system and providing a low-impedance path for the current's return.

To minimize the impact of resonating copper sections, it is advisable to establish the shortest possible connections between components using controlled impedance techniques. Additionally, the strategic placement of grounded stitching vias can effectively eliminate these oscillations by creating a capacitive path back to the ground. As a general guideline, it is recommended to position these ground vias at distances equal to or less than 1/8th of a wavelength from the corresponding conductor.

Connector Grounds

PCB connectors should be grounded, and signal conductors must be separated using ground pins to run in parallel. It is important to avoid relying on a single connector pin to prevent impedance mismatch issues and oscillations. To ensure stability and minimize contact resistance, utilize multiple ground pins, ideally accounting for around 30-40% of the total connector pins on the PCB.

In conclusion, the PCB ground plane is a crucial element in PCB layouts, requiring careful design for optimal functionality and benefits to the circuit board. The provided design guidelines and tips offer valuable assistance in this process. However, if you face any challenges, feel free to contact us for expert assistance and support.
