Adhesive Solutions for Flexible PCB Manufacturing: Types and Applications

Views: 1637 Author: Site Editor Publish Time: 2024-05-21 Origin: Site

Adhesives are crucial in PCB manufacturing, playing a vital role in bonding coverlays, adhering stiffeners, and adding complexity to flexible circuits. They ensure the integrity, functionality, and durability of these circuits. As the demand for advanced electronics grows, understanding the different types of adhesives and their applications becomes essential. This article explores the various adhesives used in PCB manufacturing, their properties, and their impact on flexible circuit performance.

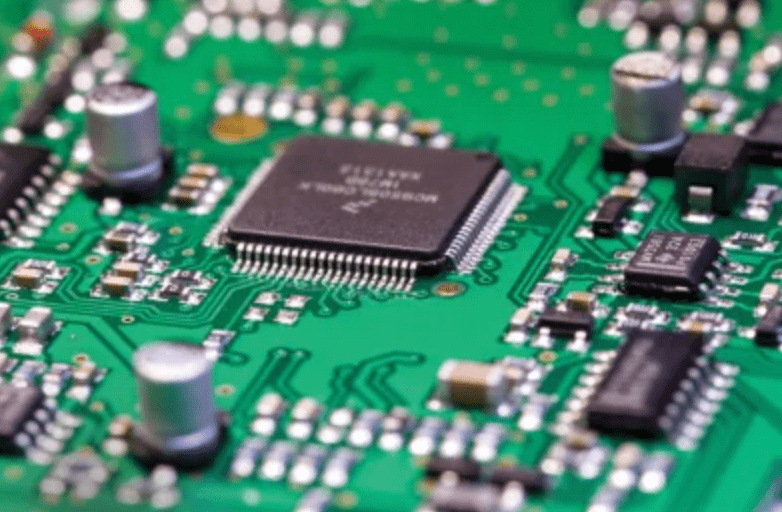

pcb adhesives

Types of Adhesives Used in PCB Manufacturing

Different types of adhesives are employed based on their specific properties and the requirements of the application. From providing strong, durable bonds to offering flexibility and heat resistance, each adhesive type plays a unique role in the assembly and performance of PCBs.

Epoxy Adhesives

Epoxy adhesives are widely used in PCB manufacturing due to their strong bonding properties and high durability. These adhesives are known for their rigidity, which makes them ideal for applications where a firm hold is required. Epoxy adhesives provide excellent thermal and chemical resistance, making them suitable for harsh environments. However, their stiffness can be a drawback in applications requiring high flexibility.

Acrylic Adhesives

Acrylic adhesives offer a balance between flexibility and strength, making them suitable for a variety of PCB applications. These adhesives are less rigid than epoxy, providing better performance in circuits that need to withstand dynamic bending. Acrylic adhesives are also known for their good environmental resistance and ease of use. While they may not be as strong as epoxy adhesives, their flexibility makes them a preferred choice for flexible circuits.

Pressure Sensitive Adhesives (PSA)

Pressure sensitive adhesives (PSA) are commonly used for applications where the circuit needs to be adhered to another material with simple pressure. PSAs are similar to double-sided tape, with one side sticking to the circuit and the other covered by a protective film that can be peeled off when needed. These adhesives are easy to use but are not resistant to high temperatures, which limits their application in assembly processes that involve heat.

Assembly-Resistant Adhesives

Assembly-resistant adhesives are designed to withstand the high temperatures of assembly processes while retaining their adhesive properties. These adhesives are similar to PSAs in their application but offer the added benefit of heat resistance. This makes them ideal for bonding circuits that need to go through soldering or other high-temperature processes without losing adhesion.

Anisotropic Adhesives

Anisotropic adhesives are specialized adhesives used when electrical conduction is required through the adhesive layer. These adhesives conduct electricity in one direction (typically the y-axis) while remaining insulating in other directions. This unique property makes them suitable for fine-pitch boards where traditional soldering is not feasible. Anisotropic adhesives achieve this by suspending electrically conductive particles in a matrix, aligning them to conduct in a specific direction.

This table provides a clear comparison of the key adhesive types used in PCB manufacturing:

Adhesive TypeStrengthsLimitationsApplications
Epoxy Adhesives- Strong bonding
- High rigidity
- Excellent thermal and chemical resistance
- Less flexible
- Not suitable for dynamic bending
Ideal for applications requiring firm support and resistance to mechanical stress
Acrylic Adhesives- Greater flexibility
- Good environmental resistance
- Easy to use
- Less rigid than epoxy
- May not provide the same mechanical strength
Suitable for flexible circuits needing to withstand movement and bending
Pressure Sensitive Adhesives (PSA)- Easy to apply
- Useful for quick, temporary bonding
- Not resistant to high temperatures
- Unsuitable for heat-intensive processes like soldering
Ideal for adhering circuits to other materials with simple pressure; not suitable for processes involving high heat
Assembly-Resistant Adhesives- Can withstand high temperatures during assembly processes
- Retains adhesion properties after heat exposure
- More complex to apply compared to PSAsSuitable for bonding components that will undergo heat-intensive manufacturing steps without losing adhesion
Anisotropic Adhesives- Conducts electricity in one direction (y-axis)
- Insulating in other directions
- Specialized use
- Potentially more expensive and complex to apply
Ideal for precise electrical connections where traditional soldering is impractical; useful for fine-pitch boards
Adhesive-Based Laminates- Cost-effective
- Bonds copper layers to laminate using adhesive
- Increases overall PCB thickness
- May not be suitable for applications requiring minimal thickness
Suitable for budget-conscious projects where cost savings are critical; trade-offs include increased thickness

Applications of Adhesives in PCB Stack-Ups

Adhesives are integral to the construction and functionality of PCB stack-ups, playing critical roles in bonding various layers and components.

Adhesive-Based Laminates

Adhesive-based laminates are commonly used when cost is a primary concern. This type of laminate is formed by bonding copper layers to the laminate using an adhesive. While this method is more economical than traditional flexible laminates, it results in a significant increase in thickness due to the additional adhesive layers. These laminates are suitable for applications where budget constraints are more critical than minimizing thickness.

Bondplys

Bondplys are materials used to bond layers within a PCB stack-up, typically involving a laminate surrounded by adhesive on both sides. When pressed between layers, the adhesive conforms and bonds the layers together, providing electrical insulation or creating a thicker dielectric layer necessary for achieving specific impedance values. The thickness of both the laminate and adhesive can be adjusted to accommodate heavier copper weights and ensure proper bonding of inner layers.

Coverlays

Coverlays protect the surface copper and shield it from environmental factors. They consist of a polyimide material adhered to the surface of the flexible circuit, with openings for pads, holes, or other necessary access points. The adhesive portion of coverlays varies depending on the stack-up requirements, with thicker adhesives used for heavier copper weights to ensure proper adhesion and conformity to the circuit design. Coverlays are essential for maintaining the integrity and reliability of the circuit by providing a protective barrier.

Stiffeners

Stiffeners add mechanical support and rigidity to flexible circuit boards, ensuring they maintain their shape and function in various applications. Stiffeners are adhered to the flexible circuit board using specific adhesives that bond the stiffener material to the coverlay of the circuit. This process creates rigid sections within the otherwise flexible circuit, providing the necessary support for components that require stability.

Final Thoughts

Selecting the right adhesive is crucial for the success of PCB manufacturing. By understanding the specific requirements of your application, matching them with the appropriate adhesive properties, considering cost vs. performance, and conducting thorough testing, you can ensure the reliability and performance of your PCBs. Leveraging the strengths of each adhesive type and consulting with experts can further optimize your manufacturing process, leading to high-quality, durable, and efficient flexible circuits. For more guidance on choosing the right adhesive for your specific needs, feel free to get in touch with us at sales@victorypcb.com.
