How to Build a Detailed BOM (Bill of Materials) for PCB Manufacturing

Views: 481 Author: Site Editor Publish Time: 2024-09-12 Origin: Site

In PCB manufacturing, engineers need a Bill of Materials (BOM) to organize every component required for their product. A BOM is a vital document for tracking parts, managing inventory, and ensuring production accuracy. Whether you're creating a simple board or a complex multi-layer product, a detailed BOM is essential for efficiency. This guide walks engineers through the process of building a comprehensive BOM, covering key elements, best practices, and common mistakes to avoid.

Bill of Materials

What is a Bill of Materials (BOM)?

A Bill of Materials (BOM) is a comprehensive list that details all the parts, components, raw materials, and subassemblies required to manufacture a product. It also includes instructions on sourcing and using these materials. In PCB manufacturing, a BOM organizes components like resistors, capacitors, and integrated circuits. Often referred to as a "recipe," a BOM is crucial for ensuring all teams involved in production—design, engineering, and manufacturing—are aligned for accurate and efficient results.

Types of BOMs in PCB Manufacturing

  • Engineering BOM (EBOM): An EBOM is created by engineers during the product design phase and is often generated using CAD software. It lists all the components and materials needed to conceptualize and develop the product but is not as detailed as the MBOM. It focuses on the design and may include alternative components for flexibility. It reflects the conceptual design of the PCB in pcb manufacturing.

  • Manufacturing BOM (MBOM): The MBOM is used for production and contains a comprehensive, detailed list of all parts, subassemblies, and instructions needed to build a final, shippable product. It includes specific quantities, how each part fits into the assembly, and procurement details.

Key Elements of a BOM for PCB Manufacturing

A well-structured Bill of Materials (BOM) includes several key components, all of which play a crucial role in ensuring the production team has the necessary information to procure, track, and assemble the product efficiently.

1. BOM Level

The BOM level defines the hierarchy of components, subassemblies, and assemblies within the BOM. For example, a multi-level BOM breaks down the product into layers, where higher levels represent final products and lower levels represent subassemblies or raw materials. This hierarchy helps organize complex products like PCBs and allows for efficient management of components.

2. Part Numbers

Each component in the BOM should have a unique part number. This number is essential for inventory tracking and procurement. For instance, resistors, capacitors, and other components will all have distinct part numbers to avoid confusion during assembly.

3. Part Names

In addition to part numbers, each component should have a descriptive name. For PCB manufacturing, these could be names like "Resistor 10kΩ" or "Capacitor 100µF" to specify exactly what component is needed.

4. Phase

The phase refers to the lifecycle stage of the component, such as “In Design,” “In Production,” or “Obsolete.” This helps track which parts are finalized and ready for manufacturing.

5. Description

Each component should have a detailed description. This description helps differentiate between similar components and ensures that the correct part is used during manufacturing. For example, descriptions might include specifications like voltage rating, tolerance, or package size.

6. Quantity

The BOM should clearly specify the quantity of each component required to build the PCB. Accurate quantities ensure that you don’t over-order or run out of parts during production.

7. Unit of Measure

Each component should be listed with its unit of measure, whether it's in "pieces," "grams," or other applicable measurements.

8. Brand/Manufacturer

Including the Brand/Manufacturer is crucial for sourcing specialized components like ICs, where the brand affects quality and performance. For generic components like resistors, a broader brand selection can be listed to provide flexibility in sourcing.

9. Procurement Type

Specify whether the component is purchased off-the-shelf or manufactured in-house. For example, most capacitors or ICs are typically purchased, whereas custom PCB layers might be manufactured internally.

10. Reference Designators

In PCB manufacturing, reference designators are crucial for linking specific components to their placement on the PCB layout. For instance, resistors may be marked as "R1, R2, R3" on the PCB, which correlates to the BOM and allows the production team to match the components with their exact location on the board.

11. BOM Notes

Including additional notes—such as handling instructions, tolerances, or approved alternatives—can further clarify the BOM for the production team.

Why a BOM is Essential for PCB Assembly

For PCB assembly, a detailed BOM is not just a formality—it’s a blueprint for success. The PCB BOM ensures:

  • Inventory Management: A BOM provides a detailed list of all components required, ensuring accurate tracking of inventory. This prevents production delays due to shortages and reduces excess stock, improving overall production efficiency.

  • Cost Control: By detailing the exact materials and quantities required, the BOM helps manufacturers estimate production costs more accurately. This allows for better budgeting, cost management, and helps avoid unnecessary spending.

  • Procurement Alignment: The BOM synchronizes procurement activities with production needs, helping teams identify the right suppliers, manage costs, and ensure timely delivery of parts. This reduces the risk of delays and helps streamline the supply chain.

  • Accurate Assembly: The BOM provides a clear and organized structure of the components and their placement, which enhances the accuracy of the production process. This ensures that each product is manufactured to the correct specifications, reducing errors and improving the overall quality of the PCB.

Step-by-Step Guide to Creating a PCB BOM

Creating a comprehensive PCB Bill of Materials (BOM) in a table format is essential for ensuring smooth production and efficient procurement. Below is a step-by-step guide to help you build a detailed and accurate BOM for PCB manufacturing:

1. Define the PCB Product

Begin by defining the specific PCB you are manufacturing. This includes understanding the overall design and variations of the product, such as different versions or models. A clear product definition helps ensure that the BOM captures all necessary components for each product variant​.

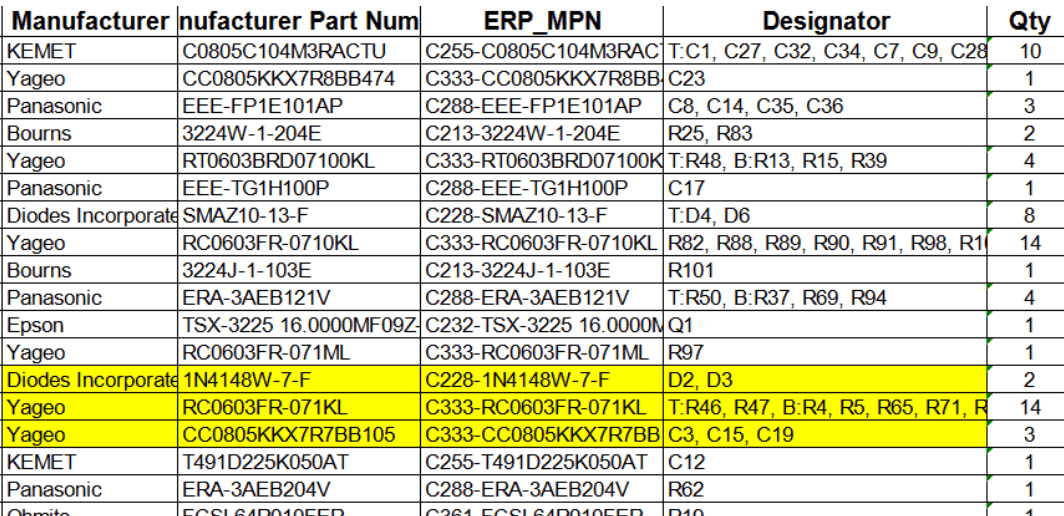

pcb bom sample

2. List All Components

Compile a list of all components required to assemble the PCB. This should include both active components (e.g., ICs, transistors) and passive components (e.g., resistors, capacitors). Each component must be accurately specified to ensure the correct parts are sourced.

3. Assign Part Numbers

Assign unique part numbers to each component in your BOM. Part numbers are critical for inventory tracking, procurement, and ensuring consistency across production. Make sure each part number is clear and standardized for easy reference.

4. Reference Designators

Add reference designators to map the components to their specific positions on the PCB. For instance, resistors might be labeled as "R1, R2, R3" on the PCB layout. Reference designators ensure that the assembly team knows exactly where each part should be placed​.

5. Include Descriptions

Provide detailed descriptions for each component. This should include specifications like voltage ratings, tolerances, package types, and other characteristics that help distinguish similar components.

6. Specify Quantities

Clearly state the quantity of each component required to assemble the PCB. Ensure that the quantity is precise to avoid under- or over-ordering, which can affect production efficiency and costs.

7. Define the Unit of Measure

List the unit of measure for each component, whether it’s in pieces, meters, grams, or another relevant unit. This helps procurement teams order the correct amounts​.

8. Indicate Procurement Type

Identify whether the component is purchased off-the-shelf or manufactured in-house. For example, ICs may be sourced from a supplier, while custom PCB layers might be manufactured internally.

9. Track Component Phase

Label each component with its phase in the production lifecycle. This could be "In Design," "In Production," or "Obsolete," helping teams manage changes in the development cycle​.

10. Add BOM Notes

Include any additional BOM notes that are helpful for the production team. These might include handling instructions, alternative parts, or any specific assembly details that could affect production.

11. Review and Update Regularly

As designs evolve, regularly review and update your BOM to reflect changes in components, quantities, or suppliers. Keeping the BOM up-to-date helps prevent production errors and ensures all departments are aligned.

Best Practices for Managing a PCB BOM

Here are some best practices for effectively managing a PCB BOM to ensure accuracy, streamline production, and improve collaboration across teams:

1. Use BOM Management Software

Relying on spreadsheets can become cumbersome, especially for complex PCBs with multi-layer designs. BOM management software, such as ERP or PLM systems, helps automate updates, track revisions, and ensures that all stakeholders have access to the latest version of the BOM. This prevents errors caused by outdated or misaligned data.

2. Implement Version Control

Regular design updates mean that BOMs must evolve. Version control ensures that any changes made to the BOM are tracked and documented, making it easy to revert to previous versions if needed. It also guarantees that production teams are always working with the most up-to-date BOM.

3. Collaborate Across Teams

A well-managed BOM serves as a communication tool between different departments, such as engineering, procurement, and manufacturing. Ensuring that all teams contribute to and access the BOM enhances collaboration and reduces miscommunication.

Conclusion

A well-structured Bill of Materials is the backbone of successful PCB manufacturing. By meticulously organizing components, ensuring accurate part numbers, and regularly updating the BOM, you can streamline production, improve cost control, and enhance the overall quality of your product. Whether you’re managing small-scale or large-scale PCB projects, a comprehensive BOM will save time, reduce errors, and boost efficiency.
