BGA vs. QFN: Choosing the Right Packaging

Views: 183 Author: Site Editor Publish Time: 2024-06-11 Origin: Site

Choosing the right packaging form for integrated circuits is crucial in the field of electronics. Different packaging forms have their unique characteristics and application areas. The following content is to help you better distinguish between two commonly used packages: QFN and BGA, for your reference.


Understanding BGA & QFN

1. What is BGA?

   BGA stands for Ball Grid Array, which is a type of integrated circuit packaging commonly seen in modern electronic devices.

2. What is QFN?

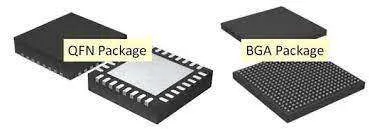

   QFN stands for Quad Flat No-leads, which is a common form of integrated circuit packaging in surface-mount technology.

Comparison of BGA and QFN

FeatureBGA (Ball Grid Array)    QFN (Quad Flat No-leads)
Connection TypeSolder balls connect to the bottom gridExposed pads connect to the bottom
Pin DensityHigh Relatively High
Thermal PerformanceGoodGood
Electrical PerformanceGoodGood
Repair/InspectionChallenging due to hidden solder ballsRelatively easy, pads visible and accessi-ble from the side
Mechanical StrengthHigh, better resistance to bending and t-wisting Good
ApplicationHigh-density connections, high mechanic-al strength applications Space-constrained, thermal managemen-t critical, easy repair applications

Advantages and Limitations of BGA & QFN

Different packaging forms have their unique characteristics and application areas. Here are the advantages and limitations of BGA and QFN packaging, respectively.

1. BGA (Ball Grid Array)

Advantages:

   - High pin density: BGA packaging offers a high-density pin layout, accommodating more functions and connections in small devices.

   - Good thermal performance: The uniform layout of solder balls across the bottom allows for effective heat dissipation.

   - Good electrical performance: Stable, low-resistance connections improve electrical performance.

   - Mechanical strength: BGA packaging is relatively strong, resisting physical stress to a certain extent.

Limitations:

   - Difficulty in repair and inspection: Hidden solder ball connections make inspection and repair challenging, requiring special equipment and techniques.

   - Higher manufacturing costs: The manufacturing process of BGA packaging is usually more complex than traditional methods, potentially increasing costs.

   - Design complexity: Designing BGA packaging circuit boards may require consideration of solder ball layout and connections, adding to design complexity.

2. QFN (Quad Flat No-leads):

Advantages:

   - Lower manufacturing costs: QFN packaging typically has lower manufacturing costs due to its simple design and manufacturing process.

   - Good thermal performance: Direct connection of pads to the metal heat sink of the circuit board provides good thermal performance.

   - Ease of repair and inspection: Exposed pads make inspection and repair relatively easy without the need for special equipment.

   - Suitable for compact spaces: The pinless design of QFN packaging makes it useful in space-constrained applications.

Limitations:

   - Relatively lower pin density: Although QFN packaging has a high pin density, it may be relatively lower compared to BGA packaging.

   - Vulnerable pad connections: Exposed pad connections in QFN packaging may be more susceptible to mechanical damage or external environmental factors.

   - Electrical performance limitations: Some high-frequency or high-speed applications may be limited by QFN packaging, as pad connections may introduce some resistance and inductance.

How to Choose

Choosing between BGA and QFN packaging typically requires considering several aspects:

1. Space constraints: If design space is limited and high pin density is required, BGA packaging may be preferred.

2. Thermal management: If your application requires effective heat management, such as high-power applications or devices that run for extended periods, BGA packaging may be more suitable due to its better heat conduction.

3. Repair and maintenance: If frequent repair or adjustments during manufacturing are anticipated, QFN packaging may be preferable.

4. Performance requirements: Some applications may have higher electrical performance requirements, such as high-speed or high-frequency applications. In such cases, you need to evaluate the impact of each packaging type on signal integrity and electrical performance, and may require simulation or testing.

5. Manufacturing costs: Manufacturing BGA packaging may be more expensive than manufacturing QFN packaging, depending on factors such as production processes, materials, and equipment. Therefore, you need to consider your manufacturing budget and cost targets.

6. Reliability requirements: If your application has higher reliability requirements, such as long-term stable operation or use in harsh environments, you may need to evaluate the durability and reliability of each packaging type.

In summary, choosing between BGA and QFN packaging depends on your specific design requirements, performance requirements, manufacturing budget, and reliability needs. It usually requires considering the factors mentioned above and may involve simulation, testing, or cost analysis before making the best choice.

Why Transition from QFN to BGA?

Transitioning from QFN to BGA packaging may be due to several reasons, which may vary depending on design requirements, performance requirements, or market trends. Possible reasons include:

1. Higher pin density requirements: As product functionality increases and design space becomes more limited, higher pin density may be needed to accommodate more functional modules or connections. BGA packaging typically offers higher pin density, making it more suitable in such cases.

2. Better thermal management: Some high-power or long-term running applications may require better thermal management capabilities, and BGA packaging's solder ball connection typically provides better heat conduction performance, aiding in effective heat dissipation.

3. Improved electrical performance: In some high-speed or high-frequency applications, BGA packaging may be more suitable than QFN packaging, as its design can reduce electrical noise and signal integrity issues.

4. Market trends and competitive pressures: In certain market segments, there may be demand for smaller, lighter, higher-performance products, and BGA packaging typically can meet these demands and may have a competitive advantage in fiercely competitive markets.

5. Technological advances and manufacturing process improvements: With technological advancements and improvements in manufacturing processes, the manufacturing cost of BGA packaging may decrease, and the manufacturing process may become more reliable and mature, prompting some manufacturers to transition to BGA packaging.

Overall, transitioning from QFN to BGA packaging may be due to considerations such as pin density, thermal management, electrical performance, market demand, and manufacturing technology. Before making a decision, it is usually necessary to consider these factors comprehensively and conduct appropriate analysis and evaluation.
