What Is A Boiler PCB? Ultimate Guide 2023

Views: 351 Author: Site Editor Publish Time: 2023-02-27 Origin: Site

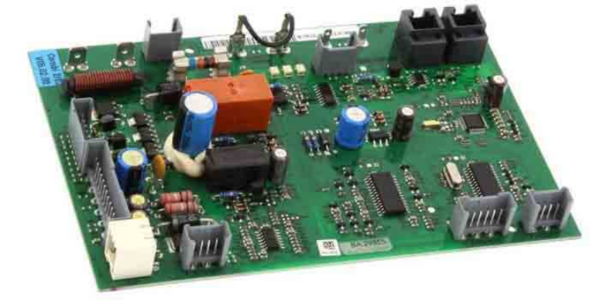

A boiler printed circuit board (PCB) is an essential component of any boiler system since it controls the flow of electricity and controls the system's operation. In this article, we'll investigate boiler PCBs in more detail and discuss their application in industrial boiler systems.

What is the function of a Boiler PCB?

A boiler PCB is a circuit board that includes the electronic parts required for the boiler to operate. It is frequently contained in a plastic or steel housing and is made to resist the extreme temps that a boiler can produce.

 Boiler PCBs have the following main parts such as:

· Diodes

·  Transistors

·  Capacitors

·  Resistors

·  and transformers, all of which are required for the boiler system to operate.

The boiler printed circuit board, which is directly attached to the boiler, is in charge of observing and managing the power passing through the boiler. The PCB also helps in controlling water pressure, flow, and boiler temperature. The boiler can be operated by the user thanks to the signals it sends to the control panel.

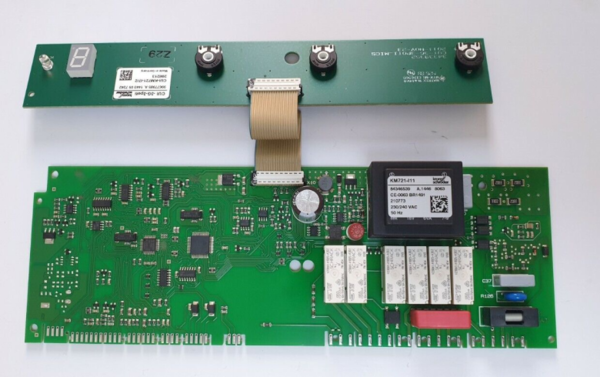

There are two types of boiler PCBs:

1. single-board

2. multi-board systems

Single-board systems, which consist of a single PCB, are frequently employed in tiny home boilers. On the other hand, multi-board systems, which are made up of numerous interconnected PCBs, are more frequently found in bigger commercial boilers.


The parts that comprise the boiler PCB can vary depending on the kind and size of the boiler, as well as its original purpose. A system designed to heat a large space, for instance, will probably need more components than one designed to heat a smaller space. The PCB's components can also be modified to suit the user's requirements.

What are the major components of a boiler PCB?

A boiler system will also need other parts, such as thermistors, temperature sensors, and other security devices, in addition to the PCB components.

These parts are designed to assist in safeguard the boiler from harm or malfunction and to guarantee that it performs at its peak. These elements can also help in lowering emissions and energy usage.

The construction of a boiler printed circuit board is generally a simple process because the parts typically come preassembled and can be easily attached to the boiler.

 The boiler could be damaged or cease to function if the components are not connected correctly, so it is important to make sure that they are. Furthermore, it's essential to confirm that the parts are appropriate for the type of boiler being utilized.

A boiler printed circuit board is a crucial part of any boiler system. It provides more safety features while also helping in controlling the system's operation and the flow of electricity.

The PCB's components must be properly connected and appropriate with the type of boiler being used, as any errors could cause the system to malfunction or be damaged.

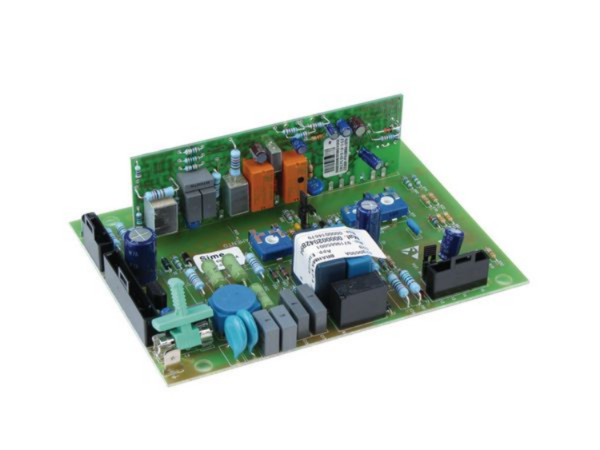

How to Fix Boiler PCB Board?

Repairing a boiler PCB board is a simple procedure that a homeowner with a basic understanding of electric cables and safety may perform. The printed circuit board, which controls all of the boiler's parts and operations, is known as the boiler's "brain."


 It's important to comprehend the basics of the board, its components, and the required instruments for the job in order to fix a boiler PCB board successfully.

It is important to make sure the boiler's electricity is turned off before starting any repairs. You should disconnect the power cord from the power supply and turn off the circuit breaker.

The boiler should be checked for physical damage or damaged wiring after the power has been turned off. The PCB board should be taken out after the inspection is finished by disassembling the screws holding it in place.

How to identify fault in boiler PCB?


The next step is to identify the PCB board's components in order to identify the error's source.

§ Transistors

§ Capacitors

§ Diodes

§  integrated circuits, and some other electronic parts are examples of such important parts.

It could be important to conduct some troubleshooting tasks if the fault's root cause is not immediately evident. These tests might involve determining the voltage and resistance of every component, among others.

It is then important to repair the board after the source of the problem has been found. This may need making other repairs or replacing or soldering certain components. In order to ensure that the board is fixed correctly, it is important to select the best the appropriate tools and supplies for the task.

The proper components should be used, along with soldering tools such a soldering iron and solder.

A professional PCB manufacturer should double check the PCB after the required modification. It is to make sure the problem has been fixed. If there are certain problems, a reliable PCB manufacturing service should troubleshoot the program again.

If you know the basics of electrical wiring and safety, fixing a boiler PCB board should be simple. The boiler's functionality can be recovered by locating and fixing the source of the problem. If you ant to check the required job is done smoothly, it is important to use the proper equipment and materials for the job.

Benefits of Good Boiler PCB Design

The PCB design is carefully prepared to guarantee that all components are connected correctly. The PCB's layout ensures the system's efficiency as well as security. This is important when it comes to boilers because they produce both heat and hot water, so any system disturbance could have major safety consequences.

The PCB also works as an electrical conductor, enabling the boiler to consume the necessary energy in a safe and effective manner. As a result, for the boiler to operate properly, the PCB must be secure and in good working order. A system breakdown and potential safety danger might occur if the PCB is defective or damaged.


A boiler PCB also makes sure the boiler is operating as effectively as possible. The PCB's layout is designed to boost performance while avoiding energy loss and driving down costs. This is important in commercial situations because energy costs can add significantly to a company's expenses.

In conclusion, boiler PCBs are crucial parts of any boiler system because they offer the safe electrical connection required to turn the system on. Additionally, they make ensure that the system is operating as efficiently as possible, eliminating energy waste and lowering costs. As a result, a reliable and functional PCB is essential for any boiler system.
