PCB Tombstone: Understanding Causes & Solutions in Reflow Soldering

Views: 464 Author: Site Editor Publish Time: 2024-09-19 Origin: Site

PCB tombstoning, also known as the "Manhattan" or "Stonehenge" effect, occurs when surface-mount components lift during soldering, creating open circuits and assembly defects. In this article, we’ll explore what PCB tombstoning is, its causes, impacts, and preventive strategies to ensure high-quality PCB assembly.

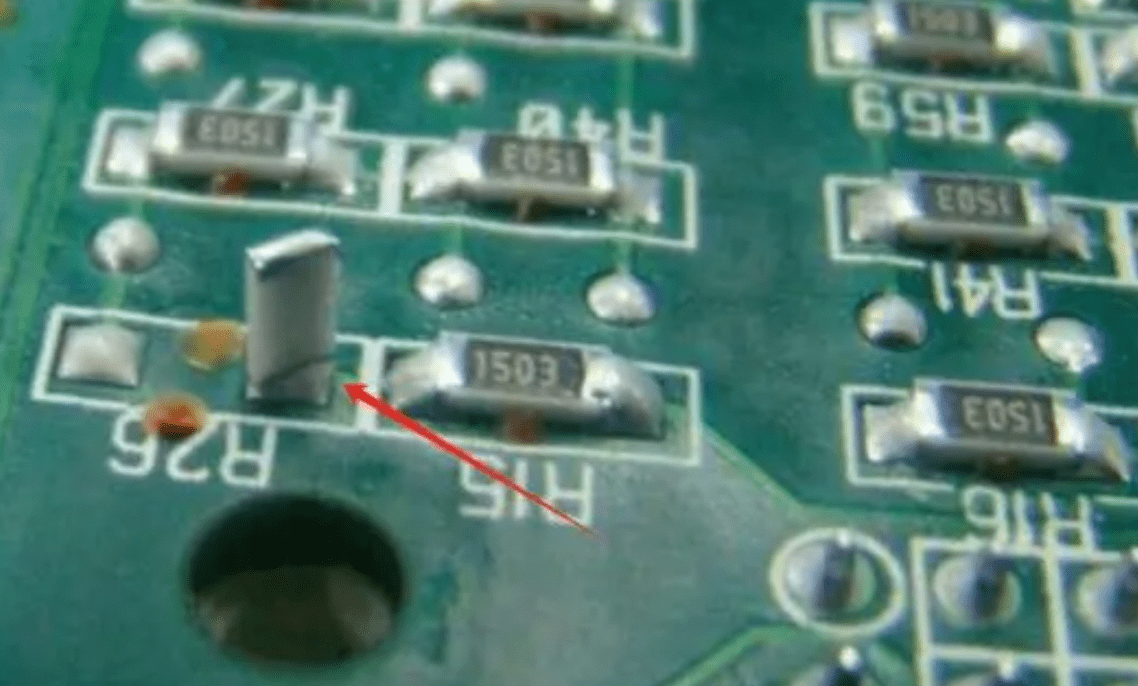

PCB Tombstoning

What is PCB Tombstoning?

PCB tombstoning is a defect that occurs during the reflow soldering process in surface-mount technology (SMT). It happens when one end of a small component, like a resistor or capacitor, lifts off the PCB and stands upright, resembling a tombstone. This defect is primarily caused by unbalanced wetting forces or thermal inconsistencies during the reflow process. Uneven solder melting at both ends of the component leads to an imbalance in surface tension, which lifts one side of the component. Tombstoning results in open circuits, affecting the functionality of electronic devices. The tombstone effect is especially common with components such as Multi-layer Ceramic Capacitors (MLCCs).

Causes of PCB Tombstone

Now that we understand what PCB tombstoning is, let’s explore the various factors that lead to this defect.

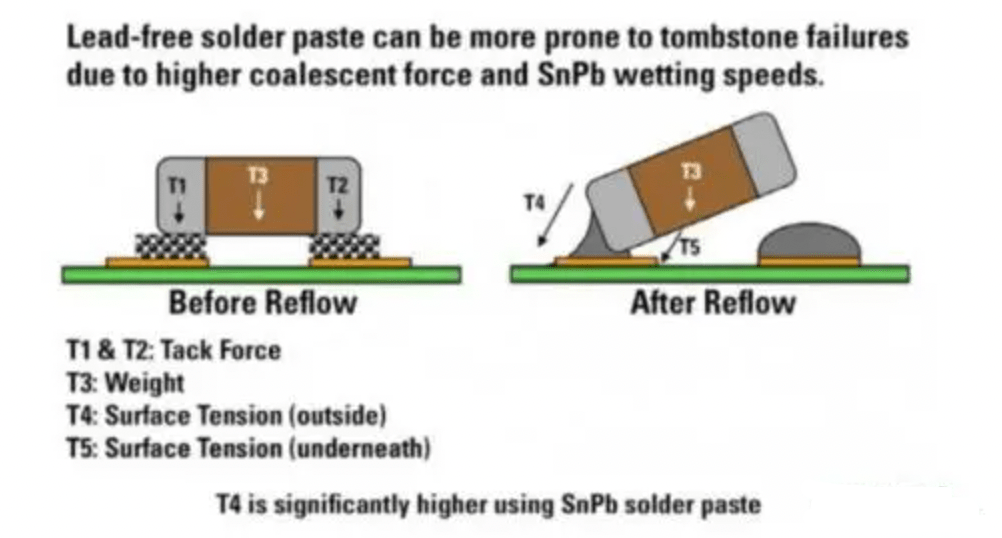

PCB Tombstone

1. Thermal Imbalance During Reflow

The primary cause of tombstoning is an uneven heating profile during reflow soldering. As the solder paste on one side of the component melts faster than on the other side, it creates an imbalance in wetting forces. The side where solder melts faster pulls the component upwards, leaving the other side disconnected. Proper reflow profiling is crucial to prevent this defect.

2. Uneven Wetting Forces

Imbalances in the wetting forces are caused by uneven solder paste application or poorly designed pads. Solder paste applied in inconsistent amounts can lead to one side of the component experiencing a greater force than the other, causing it to lift.

3. Pad Design Issues

Asymmetric or improper pad designs can also lead to tombstoning. Pads that are not of equal size or have improper spacing can cause one pad to receive more heat or solder paste than the other, creating an imbalance. To avoid this, pad sizes and shapes should be carefully optimized for the specific component type.

4. Solder Paste Application

Uneven or insufficient solder paste application during the stencil printing process can create wetting imbalances. If the paste is applied more heavily on one pad than the other, it will lead to uneven soldering. The viscosity and surface tension of the paste are also critical factors in ensuring even wetting.

5. Component Placement and Geometry

Components that are misaligned or placed incorrectly on the PCB are more likely to tombstone during reflow. Additionally, the geometry of the component itself can contribute to this issue. For example, smaller components are more susceptible to tombstoning as they experience more dramatic effects from wetting forces.

6. PCB Contamination

Contamination on the PCB pads or the components, such as dust, oil, or oxidation, can prevent the solder from bonding properly, leading to poor solder joint formation. This often results in one end of the component not being soldered, allowing it to lift during the reflow process.

7. Board Warpage

PCB warpage during the reflow process can create uneven thermal conditions, affecting the uniformity of solder melting and causing components to tombstone. Warpage occurs when the PCB material is subjected to heat and deforms slightly, leading to imbalanced forces on components.

Impact of PCB Tombstone

The impact of PCB tombstoning extends far beyond mere assembly defects, as it can significantly affect the performance and reliability of electronic devices. Below are major consequences of tombstoning.

1. Electrical Failures

Tombstoning causes an open circuit, meaning the affected component is no longer electrically connected to the circuit. This results in device malfunction, especially in critical applications such as medical devices, aerospace electronics, or telecommunications equipment.

2. Intermittent Connections

Even if the tombstoned component partially contacts the PCB, it can lead to intermittent connectivity, causing unreliable device performance. These sporadic connections can be challenging to detect during testing and may lead to product recalls or field failures.

3. Increased Production Costs

Tombstoning leads to rework and repair, increasing production time and costs. In high-volume production environments, even a small percentage of boards with tombstoning defects can result in significant delays and financial loss.

4. Reduced Product Reliability

Tombstoned components result in poor product reliability. In mission-critical applications where product failure can lead to serious consequences, such as in automotive or aerospace systems, tombstoning defects can pose a serious risk to long-term reliability.

Prevention Techniques for PCB Tombstoning

To effectively prevent PCB tombstoning, various techniques can be applied. Below are the main strategies.

1. Optimizing Pad Design

A well-designed pad layout is crucial in preventing PCB tombstoning. Symmetry in pad size ensures equal solder distribution, minimizing the chances of one side melting faster than the other. To optimize pad design:

  • Pad Length and Width: Ensure the pad length overlaps at least 0.3 mm with the component’s metal end. Avoid excessive pad width, keeping it proportionate to the component size (ideally not exceeding 0.25 mm for MLCCs).

  • Pad Spacing: Keep pad spacing tight, just enough to allow proper solder flow. Excessive spacing can result in uneven heating and solder deposition.

2. Ensuring Even Solder Paste Application

Proper solder paste application is critical to preventing tombstoning during PCB assembly. Achieving consistent solder paste deposition starts with accurate stencil printing to ensure equal amounts are applied to each pad. Solder paste quality plays a major role as well—choosing a paste with the right viscosity and surface tension is essential for even wetting during reflow.

To maintain paste integrity:

  • Store at the recommended temperature (5-10°C).

  • Allow paste to reach room temperature before use to avoid condensation.

  • Ensure thorough stirring before application, and keep unused paste properly sealed to prevent contamination and oxidation.

3. Simultaneous welding at both ends

To prevent the tombstone phenomenon, it is important to weld both ends of a component as quickly and evenly as possible. This minimizes the difference in melting times between the two ends. If one end is allowed to melt completely while the other remains solid, the surface tension from the molten solder can pull the component upright. By ensuring simultaneous soldering at both ends, you create balanced wetting forces, reducing the chances of the component standing upright and improving the overall reliability of the solder joint.

4. Cleaning the PCB and Components

Proper cleaning of the PCB and components is crucial for preventing defects like tombstoning. Contaminants such as dust, oil, or oxidation can interfere with solder adhesion, leading to poor wetting and unreliable connections. To ensure optimal soldering performance:

  • Clean PCBs and components before assembly to remove any contaminants.

  • Use appropriate cleaning solutions, such as deionized water or solvents, to eliminate oils and oxidation.

  • Ensure that both the board and components are free from residues, which can compromise solder joint quality and cause defects like tombstoning.

5. Inspection and Quality Control

Automated Optical Inspection (AOI) and X-ray inspection systems can be used to detect tombstoning early in the production process. Regular inspection and real-time quality control measures allow for timely detection and correction of defects.

6. Using Proper Reflow Profiles

To prevent tombstoning, using the correct reflow profile is crucial. A well-calibrated profile ensures that all components on the PCB heat evenly and that solder on both ends of a component melts simultaneously. The reflow process should include:

  • Controlled ramp-up to prevent thermal shock.

  • A stable soak phase to equalize component temperatures.

  • An appropriate peak temperature to ensure complete solder melting. Proper control of dwell time in these phases is essential, as it reduces temperature imbalances and promotes balanced wetting forces, minimizing tombstoning risks.

7. Material and Process Optimization

Effective material and process optimization is essential for minimizing tombstoning defects in PCB assembly. Collaborating with material suppliers to develop solder pastes tailored to specific assembly needs can improve solder performance. Factors such as solder paste rheology, flux activity, and surface tension properties should be optimized to enhance solder wetting and adhesion. Additionally, fine-tuning the solder paste application process and adjusting the reflow profile ensures consistent solder flow and minimizes thermal imbalances, reducing the risk of tombstoning.

Final Thoughts

PCB tombstoning remains a common yet avoidable issue in surface-mount assembly. By understanding the causes—whether due to thermal imbalances, pad design issues, or solder paste inconsistencies—manufacturers can implement effective preventive measures. Techniques such as optimizing pad design, ensuring uniform solder paste application, and using proper reflow profiles can greatly reduce the risk of tombstoning. Regular inspection and quality control also play a critical role in identifying and correcting tombstoning early in the production process.

Incorporating these strategies ensures a more reliable assembly process, reducing defects and improving product performance in both small and large-scale PCB manufacturing.
